Quickstart

Quickstart is intended to guide you smoothly through downloading, setting up, and running ActiveServer. For specific user guides on how to configure and manage ActiveServer, refer to the Guides section, two menu items below this one.

Prerequisites

Specifications:

SpecificationsDetails
Operating SystemLinux, Windows Server
Memory2 GB RAM (recommended)
Disk SpaceNo minimum requirements, but ensure that sufficient disk space is available for the database as all data is stored in the database
Java Development KitJava SE Development Kit 8 (Open JDK v1.8)
Java ContainerThe .jar file can run in any container that supports Servlet 2.4/JSP 2.0 or later. Default container is UnderTow.
Web BrowserThe web administration interface can be accessed using a Chrome, Firefox or Edge browser

Database:

DatabaseCompatible Versions
MySQL/Amazon Aurora MySQL5.7
Oracle11g, 12c
MSSQL2008 R2, 2012, 2014, 2016, 2017
PostgreSQL8.4 and later
DB211.1 and later

Download ActiveServer

Login to GPayments MyAccount at https://login.gpayments.com/login.

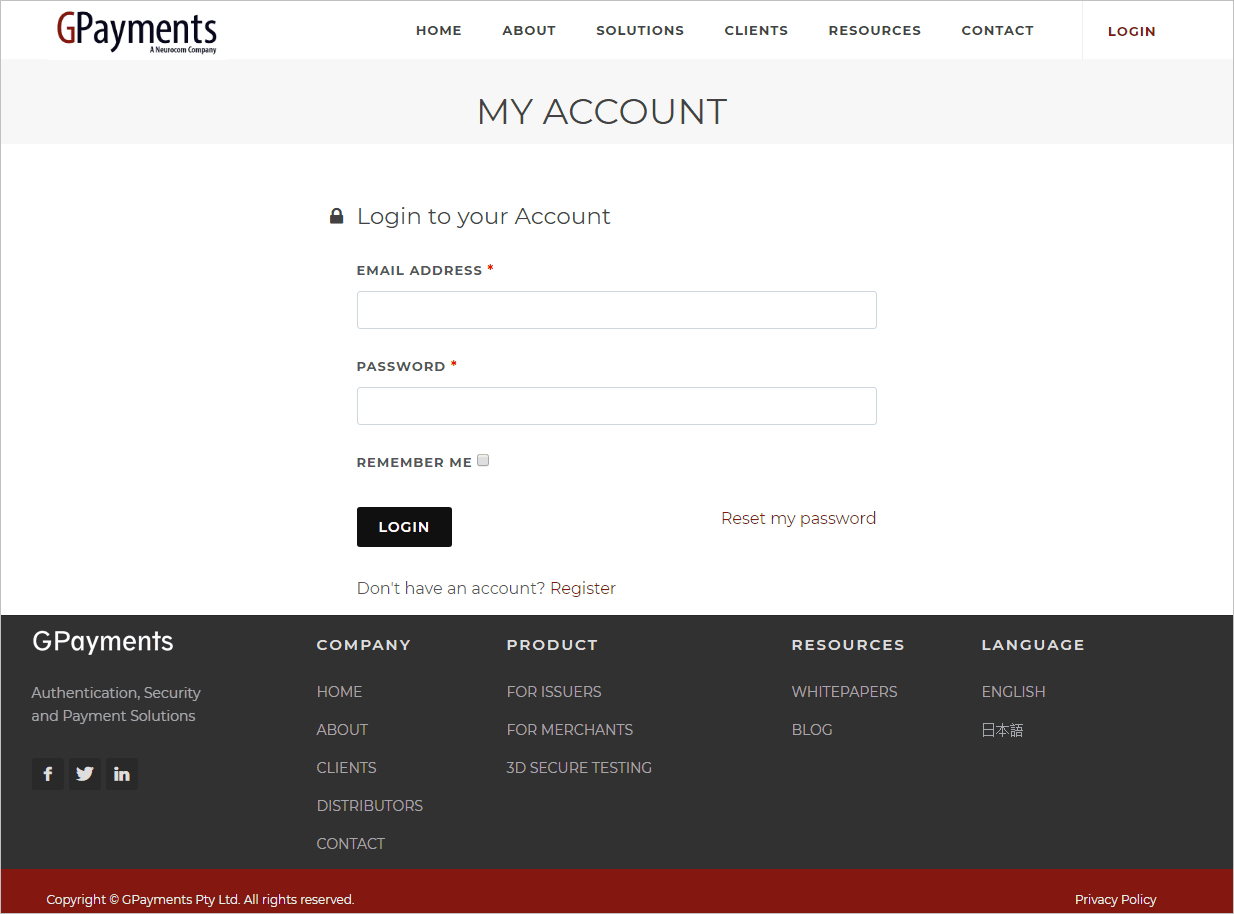

GPayments MyAccount Login

If you don't have an account, register at: https://login.gpayments.com/register

Once you are logged in you will see the MyAccount Dashboard.

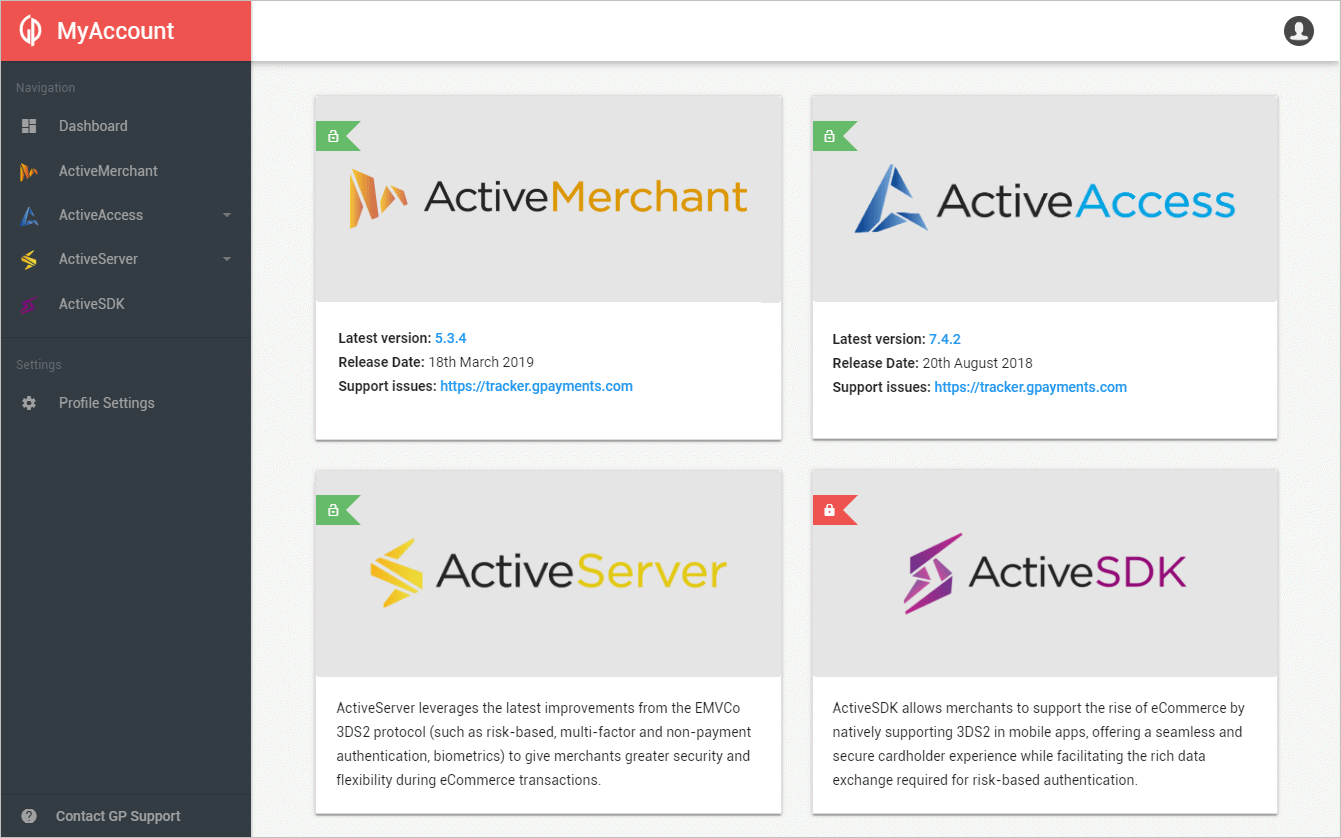

GPayments MyAccount Dashboard

Select ActiveServer > Download and download the release package.

MyAccount organisations

MyAccount utilises an organisation structure for clients to share product privileges between company users, such as downloading the software and managing instance activation and licensing.

When downloading the software, if you are not part of an organisation yet, you will be prompted to either Register an organisation or ask your point of contact with GPayments to invite you to your existing organisation. Inviting a user to an organisation can be done from the MyAccount > Profile Settings > My Organisation section.

Important

To access your already purchased software and manage existing instances for your organisation, please confirm your company does not already have an organisation setup before creating a new one.

Once part of an organisation, if your company has already purchased ActiveServer you will be able to download the package. If you are unable to download the software and have confirmed you are in the correct organisation and have already purchased the product, contact techsupport@gpayments.com for assistance. If you would like to talk to our friendly sales team about purchasing ActiveServer, you can contact them at sales@gpayments.com.

Installation

Extract the downloaded .zip file, and you should see the files below.

1
2
3
4
5
6
7
8
ActiveServer_vX.XX/
├── application-prod.properties
├── as.jar
├── EULA.pdf
├── README.txt
├── release.txt
├── startup.bat
└── startup.sh

The files are:

  • application-prod.properties - Configuration file to initialize ActiveServer.
  • as.jar - The main ActiveServer Java package.
  • EULA.pdf - A copy of the End User License Agreement.
  • README.txt - General information about ActiveServer, as well as its documentation, licensing, and support.
  • release.txt - Release notes for all versions of ActiveServer.
  • startup.bat - The startup script for Windows.
  • startup.sh - The startup script for Linux.

Configuration

Configure the system properties for ActiveServer by editing the application-prod.properties file.

You can startup ActiveServer without configuring system properties, but...

The application-prod.properties file in the package you have downloaded includes default application properties. If you start up an instance of ActiveServer using these default application properties, ActiveServer will:

  • Use a default database that will only be temporarily stored in the RAM, and will be cleared once the ActiveServer instance is shut down.
  • Create a keystore file with SunJCE that is stored locally in ${AS_HOME}/conf/security/.
  • Skip email server configurations, therefore disabling the system from sending email notifications to users.

Using the default properties may be useful for trying out the software and its interface as it allows you to quickly startup an instance of ActiveServer without having to change any settings, however, you must configure the system properties before setting up a production instance.

To change the default application properties:

Open the file application-prod.properties and change the corresponding values associated with each relevant parameter.

There are 4 categories of system properties:

Database settings

ActiveServer supports the following databases:

Each database has the following set of configurable properties:

  • as.db.vendor=
    Database vendor/type. Default value is empty, where an in-memory test database will be used. You cannot enter production with the in-memory test database. Possible values are mysql, oracle or sqlserver.
  • as.db.url=
    The database connection URL used to connect to your database. The URL must be in JDBC format.
  • as.db.username=
    Database username. Enter the username set by your database administrator.
  • as.db.password=
    Password. Enter the password set by your database administrator.
  • as.db.password-plain=
    Whether to encrypt the password above or not. ActiveServer can encrypt the password when storing it in the application-prod.properties file. To enable password encryption, enter false. To leave the password as plain text, enter true.

MySQL

To use a MySQL database, you will need the following properties:

1
2
3
4
5
as.db.vendor=mysql
as.db.url=jdbc:mysql://<Your My SQL DB Host>:3306/<Your DB Name>?useUnicode=true&characterEncoding=utf8&useSSL=false
as.db.username=<user name>
as.db.password=<password>
as.db.password-plain=true

Oracle

To use a Oracle database, you will need the following properties:

1
2
3
4
5
as.db.vendor=oracle
as.db.url=jdbc:oracle:thin:@//<Your Oracle DB Host>:1521/<Your Oracle DB Name>
as.db.username=<user name>
as.db.password=<password>
as.db.password-plain=true

MS SQL

To use a MS SQL database, you will need the following properties:

1
2
3
4
5
as.db.vendor=sqlserver
as.db.url=jdbc:sqlserver://<Your MS SQL DB Host>:1433
as.db.username=<user name>
as.db.password=<password>
as.db.password-plain=true

Web server settings

Web server settings allows you to configure the default server ports, as well as other networking related variables. Depending on your network setup, you can choose to use HTTP or HTTPS. With HTTP, the entry point must be accessible from the Internet, and so a load-balancer or reverse proxy may be required to handle HTTPS traffic as well as SSL termination.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
## Server port, protocol and SSL settings
## protocol http|https|both
as.server.protocol=http
as.server.http.port=8080
as.server.https.port=8443
as.server.https.key-store=<Your keystore file path>
## keystore type, can be pkcs12 or jks
as.server.https.key-store-type=pkcs12
as.server.https.key-store-password=<Your keystore password>
## Set to false to disable this listening port
# as.server.enabled=false
  • as.server.https.key-store=
    Keystore file path. A keystore is required for HTTPS. The keystore should contain server certificates for the specified HTTPS listening port. Please note that for a production instance, the server certificate must be commercially signed by a CA.
  • as.server.https.key-store-type=
    Keystore type. ActiveServer supports two different keystore types. Possible values are pkcs12 or jks. Commercially signed certificates issued by a CA are typically in "pkcs12" format with a file extension of .p12 or .pfx.
  • as.server.enabled=
    Enable or disable the server listening port. To enable the server listening port, enter true. To disable server listening port, enter false.

Depending on your network configuration, you may want to setup administration access via a separate port. To do so, the following settings must be applied. By default, the Admin port number is disabled. If enabled, port numbers set below must not conflict with any other port numbers.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
#Admin port , protocol and ssl config
#By default, Admin port configuration shares with Server port configuration
#Set following setting to true to enable this listening port
as.admin.enabled=false
as.admin.http.port=9090
as.admin.https.port=9443
#protocol http|https|both
as.admin.protocol=http
as.admin.https.key-store=<Your keystore file path>
#keystore type, can be pkcs12 or jks
as.admin.https.key-store-type=pkcs12
as.admin.https.key-store-password=<Your keystore password>

Authentication and Admin API port. Only available in HTTPS with mutual authentication. This port will be enabled once the ActiveServer instance is activated. A server restart is required to enable this port.

1
2
#Auth api port, only https port is configurable
as.api.port=7443

The following Directory Server listening port settings are for ActiveServer to send and receive requests with the Directory Server in mutual authentication. These connectors are always HTTPS enabled. Server and client certificates for Directory Servers can be configured later on, as described in Manage DS certificates.

Note

Once you complete the certificate settings on the Administrator UI, a server restart is required.

Each Directory Server has the following set of configurable properties:

  • as.<Card Scheme>.port=

    These are the port numbers for each card scheme for listening on their Directory Servers. Default values can be found below.

    Note

    The port number must not conflict with any other port numbers.

  • # as.<Card Scheme>.enabled=false

    This parameter is commented out by default. Determines the status of the Directory Server listening port, disabled or enabled.
    To disable the Directory Server listening port, enter false, otherwise, leave it commented out.

American Express

1
2
3
as.amex.port=9600
## Set to false to disable DS HTTPS listening port
# as.amex.enabled=false

China Union Pay

1
2
3
as.chinaunionpay.port=9601
## Set to false to disable DS HTTPS listening port
# as.chinaunionpay.enabled=false

Support for China Union Pay will be added in a future release.

Discover / Diners Club International

1
2
3
as.discover.port=9602
## Set to false to disable DS HTTPS listening port
# as.discover.enabled=false

JCB

1
2
3
as.jcb.port=9603
## Set to false to disable DS HTTPS listening port
# as.jcb.enabled=false

Mastercard

1
2
3
as.mastercard.port=9604
## Set to false to disable DS HTTPS listening port
# as.mastercard.enabled=false

Visa

1
2
3
as.visa.port=9605
## Set to false to disable DS HTTPS listening port
# as.visa.enabled=false

Keystore settings

ActiveServer provides 3 options for storing encryption keys:

Use the following property to set the keystore type:

1
as.keystore.type=<keystore type>
  • as.keystore.type=
    Keystore type - possible values are local, s3, pkcs11.

Local keystore (SunJCE)

To use a local keystore file, use the following property:

1
as.keystore.local.path=${AS_HOME}/security/keystores/
  • as.keystore.local.path=
    Keystore file path. Enter the file path to your keystore file, which should point to the folder that contains the keystore files.

Amazon S3 keystore

ActiveServer supports using Amazon S3 as the keystore. To utilize an Amazon S3 keystore, you need to set the AWS Bucket, AWS Region, and AWS Credentials settings.

AWS Bucket

Set your AWS Bucket path in the following properties:

1
2
as.keystore.s3.bucket-name=<Your S3 Bucket Name>
...
AWS Region

The AWS Region can be set in several ways. A list of region codes can be found in the Region column of this table: Amazon AWS - Regions and Availability Zones.

  1. Set the AWS Region code in the following properties:

    1
    2
    3
    ...
    as.keystore.s3.region=<Your S3 Region Name>
    ...

  2. Or, set the AWS Region in the AWS config file on your local system. The config file should be located at: ~/.aws/config on Linux, macOS, or Unix, or C:\Users\USERNAME\.aws\config on Windows. This file should contain lines in the following format:

    1
    2
    [default]
    region = <Your S3 Region Name>

AWS Credentials

AWS Credentials include an access_key_id and a secret_access_key. The AWS Credentials can be set in a number of ways:

  1. Set your AWS Credentials in the following properties:

    1
    2
    3
    4
    ...
    as.keystore.s3.credentials.access-key-id=<Your Amazon S3 access key ID>
    as.keystore.s3.credentials.secret-access-key=<Your Amazon S3 secret access key>
    ...

  2. Or, set the AWS Credentials in the AWS credentials profile file on your local system. The credentials profile file should be located at: ~/.aws/credentials on Linux, macOS, or Unix, or C:\Users\USERNAME\.aws\credentials on Windows. This file should contain lines in the following format:

    1
    2
    3
    [default]
    aws_access_key_id = <Your Amazon S3 access key ID>
    aws_secret_access_key = <Your Amazon S3 secret access key>

  3. Or, if you deploy ActiveServer on an AWS EC2 instance, you can specify an IAM role and then give your EC2 instance access to that role. In this case, you need to follow the Amazon AWS - Using IAM Roles to Grant Access to AWS Resources on Amazon EC2 guide.

PKCS11 HSM

ActiveServer supports using a HSM as the keystore. The HSM must support the PKCS11 API. To use hardware encryption with a PKCS11 HSM, you will need the following properties:

1
2
as.keystore.pkcs11.library=<the library to the pkcs11 driver>
as.keystore.pkcs11.slot=<the slot number>
  • as.keystore.pkcs11.library=
    HSM driver library. For Linux, this is typically a .so file. For Windows, this is typically a .dll file. Please consult your HSM's documentation for details on the library that should be use.
  • as.keystore.pkcs11.slot=
    The slot number on your HSM. Please consult your HSM's documentation for details on the slot number that should be use.

Info

Please note that setting up and configuring an HSM is out of scope for this document. Please ensure your HSM is fully functional before configuring with ActiveServer.

Email server settings

ActiveSever allows you to send email notifications to users. Email notifications can be used to notify a user of their activation URL, remind users when a license is about to expire etc.

You will need an email account with its associated credentials and server details to setup email notifications.

1
2
3
4
5
6
as.mail.host=<Your SMTP server host>
as.mail.port=<Your SMTP server port>
as.mail.user-name=<Email address>
as.mail.password=<Email password>
as.mail.auth=true
as.mail.start-tls=true
  • as.mail.host=
    The SMTP domain of your email server.
  • as.mail.port=
    The port number of your email server.
  • as.mail.user-name=
    The email address of the account from which emails will be sent from.
  • as.mail.password=
    The password of the email account.
  • as.mail.auth=
    Whether the email account requires SMTP authentication. If the email account requires authentication, enter true. Otherwise, enter false. If unsure, please consult your email server administrator for details.
  • as.mail.start-tls=
    TLS required by the SMTP server or not. If SMTP server requires TLS, enter true. Otherwise, enter false. If unsure, please consult your email server administrator for details.

Info

Please note that setting up and configuring email servers is out of scope for this document. Please ensure your email server is fully functional before configuring with ActiveServer.

Setting TLS version

ActiveServer specifies HTTPS connectors to use TLS 1.2 only by default. However, due to a reported issue with Java 1.8, the TLS 1.0 and 1.1 protocols are also enabled. If you wish to disable protocols, a workaround is possible by editing the Java security file directly and is shown below.

Warning

Note that editing the java.security file will affect all Java applications on the server. GPayments cannot be held responsible for any issues that may result from this change.

To disable a specific protocol, edit the java.security file located at <jdk directory>/jre/lib/security and update the jdk.tls.disabledAlgorithms entry. The original entry might look like the below:

1
2
jdk.tls.disabledAlgorithms=SSLv3, RC4, DES, MD5withRSA, DH keySize < 1024, \
    EC keySize < 224, 3DES_EDE_CBC, anon, NULL

To disable protocols considered weak and not included by default, such as SSLv2Hello, TLSv1, TLSv1.1, append those values to the entry like below:

1
2
jdk.tls.disabledAlgorithms=SSLv3, RC4, DES, MD5withRSA, DH keySize < 1024, \
    EC keySize < 224, 3DES_EDE_CBC, anon, NULL,SSLv2Hello, TLSv1, TLSv1.1

Important

The suggested protocols to disable are just suggestions, consult your security team when deciding your security configuration for ActiveServer.

After editing the java.security file, restart any running ActiveServer instances for the change to take effect. You can check what protocols are enabled by running the following command on a linux terminal:

1
nmap --script +ssl-enum-ciphers -p 7443 127.0.0.1

Startup ActiveServer

Now that all properties are correctly configured, you can startup an instance of ActiveServer.

If you use Linux, open Terminal. If you use Windows, open Command Prompt.

Change your working directory to the folder that contains the startup scripts (.sh or .bat file).

Now you can startup ActiveServer with the following command.

1
./startup.sh
1
startup.bat

Make sure the as.jar file is in the same directory as the startup scripts

The startup command will not work if the as.jar file is not in the same directory as the startup scripts.

You should now see the following output in Terminal or Command Prompt. Make sure to take note of the Administration URL, as it will be needed in the next step.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
______________________________________________________________________________________

ActiveServer by GPayments

_______        _____ _____               ________
___    |_________  /____(_)___   _______ __  ___/_____ ___________   _______ ________
__  /| |_  ___/_  __/__  / __ | / /_  _ \_____ \ _  _ \__  ___/__ | / /_  _ \__  ___/
_  ___ |/ /__  / /_  _  /  __ |/ / /  __/____/ / /  __/_  /    __ |/ / /  __/_  /
/_/  |_|\___/  \__/  /_/   _____/  \___/ /____/  \___/ /_/     _____/  \___/ /_/

______________________________________________________________________________________

.
.
.

--------------------------------------------------------------------------------
        ActiveServer by GPayments is up and running.

        Version:                      1.0.0
        Git Commit Id:                da369ec

        Activation:                   NOT ACTIVATED, please contact GPayments
        Authentication API Port:      7443

        Server:                       http://10.0.75.1:8081
        Administration:               http://10.0.75.1:8081

        Key Store Type:               SUNJCE

        Profile(s):                   [prod]
-------------------------------------------------------------------------------

Startup script

In the startup scripts, the environment variable AS_HOME is set to the directory in which application-prod.properties is located. ActiveServer uses AS_HOME to find the configuration files as well as maintain keystores and output logs. By pointing AS_HOME to different locations, it is possible to run multiple ActiveServer instances on the same server. This can be done by copying the package to a different directory, or creating different startup scripts, and within those scripts, pointing AS_HOME to different directories.

Note

Where there are multiple instances on the same server, the port numbers must not conflict in any of the application-prod.properties files.

ActiveServer profile

In addition to setting AS_HOME, the startup script also sets the environment variable AS_PROFILES. This is a convenient mechanism to specify profile based configurations.

By default, the profile is set to prod.

ActiveServer uses the pattern application-<profile>.properties to load the profile's configuration file. Therefore under the default prod profile, application-prod.properties will be loaded. However, you can create new profiles (such as test) to setup different configurations for ActiveServer.

To create a new profile:

  • Create a new configuration file named application-test.properties and place it in the same directory as the prod configuration file.
  • Open the startup scripts and set the value of AS_PROFILES to test.

    ActiveServer will load the new profile instead of the old prod properties.

    ActiveServer can also load multiple profiles at the same time, to do this set the value of AS_PROFILES to prod,test and ActiveServer will load properties files from both prod and test profiles.

    With these options available, you can maintain settings separately under separate .properties files.

Tip

If you maintain all database settings in application-db.properties, and web server settings in application-web.properties, by setting the value of AS_PROFILES to db,web, ActiveServer settings can be segregated for different administrators to manage.

Setup Wizard

Once ActiveServer is up and running, you can access the Administrator UI via the Administration URL.

If this is your first time running ActiveServer, the Setup Wizard will appear and guide you through the setup process.

The Setup Wizard involves the following steps:

EULA agreement

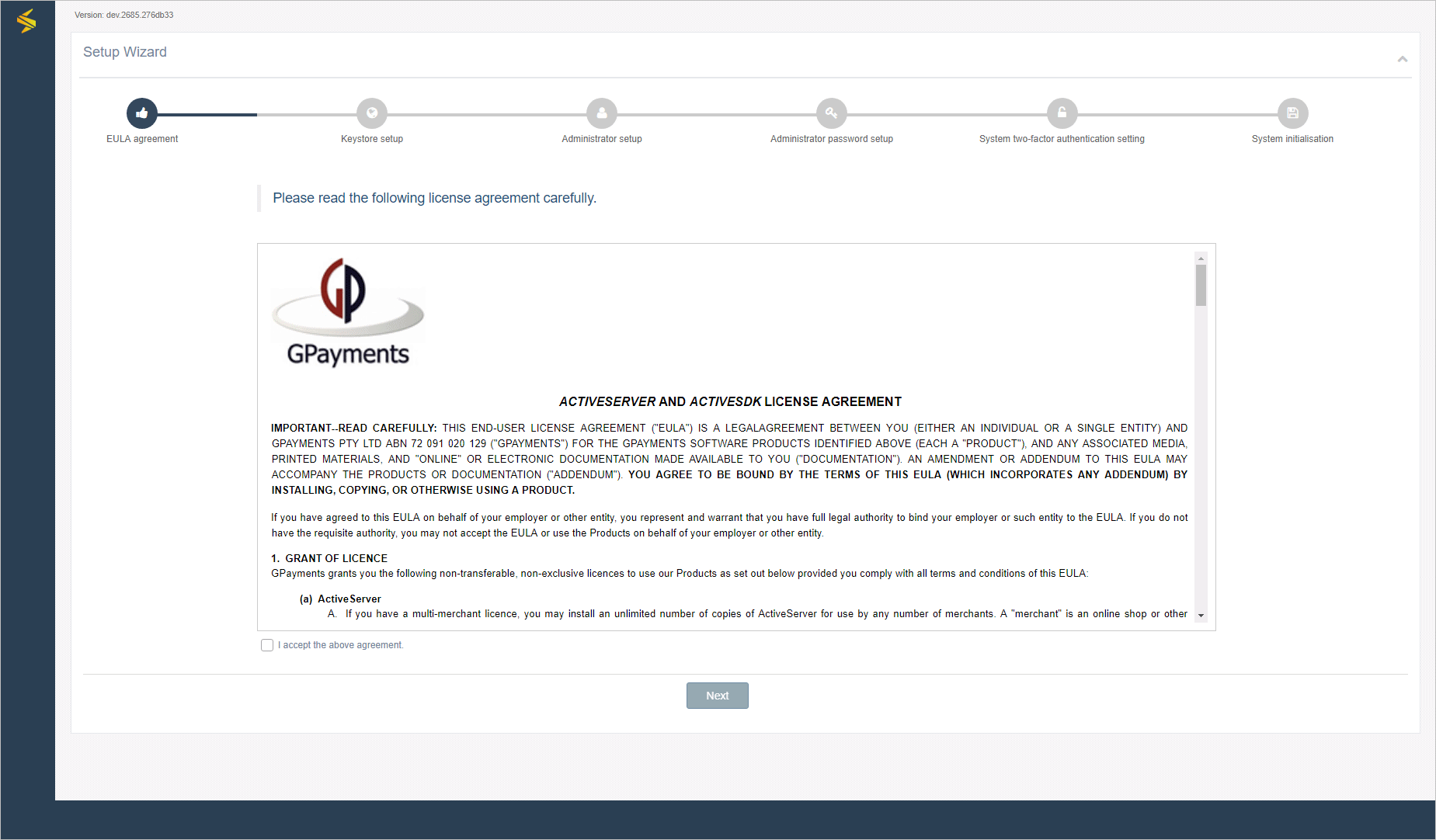

Setup Wizard - EULA Agreement

Read the EULA Agreement. If you agree to the terms and conditions, select the I accept the above agreement. checkbox to proceed.

Keystore setup

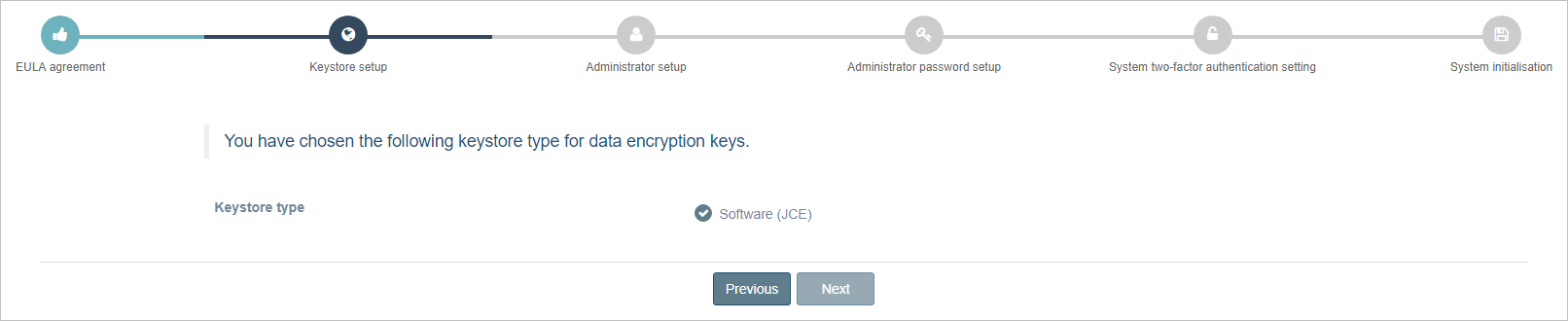

Setup Wizard - Keystore type

  • Select the Keystore type.

    If Software was selected by during setup, SUNJCE will be utilised.

    There is also the option to use a PKCS#11 HSM by entering the appropriate details in the application-prod.properties file. See the Encryption Module on how to setup a PKCS#11 HSM.

  • Select the Next button to continue.

Administrator setup

Setup Wizard - Administrator Setup

  • Enter the user details for your Administrator account.

  • Select the Create button to create the account.

  • Select the Next button to continue.

Administrator password setup

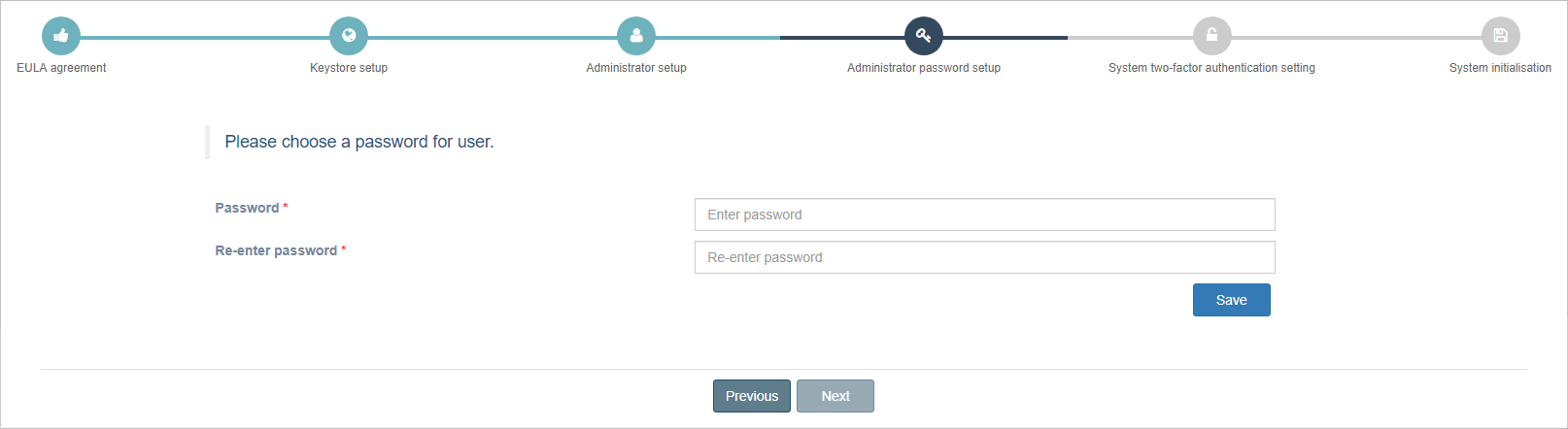

Setup Wizard - Administrator Password Setup

  • Enter a password for the Administrator account.

  • Re-enter the password to confirm it.

  • Select the Save button to create it.

  • Select the Next button to continue.

System two-factor authentication setting

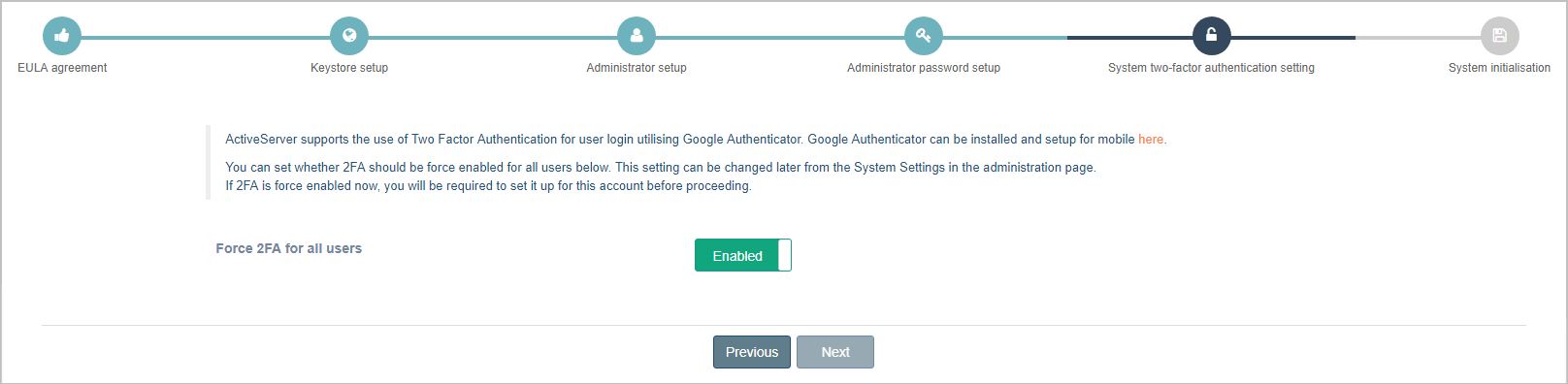

Setup Wizard - Two Factor Authentication

ActiveServer supports two factor authentication for signing into the Administrator UI.

Note

To use this feature, you must have Google Authenticator installed on a mobile device.

Refer to Install Google Authenticator for setup instructions for Google Authenticator.

By default, ActiveServer does not force users to use two factor authentication.

To mandate two factor authentication for all users:

  • Enable the toggle, adjacent to Force 2FA for all users.

  • Select the Next button to continue.

System initialisation

Setup Wizard - System Initialisation

The Setup Wizard will inform you that system initialisation is complete and you will be redirected to the ActiveServer login page.

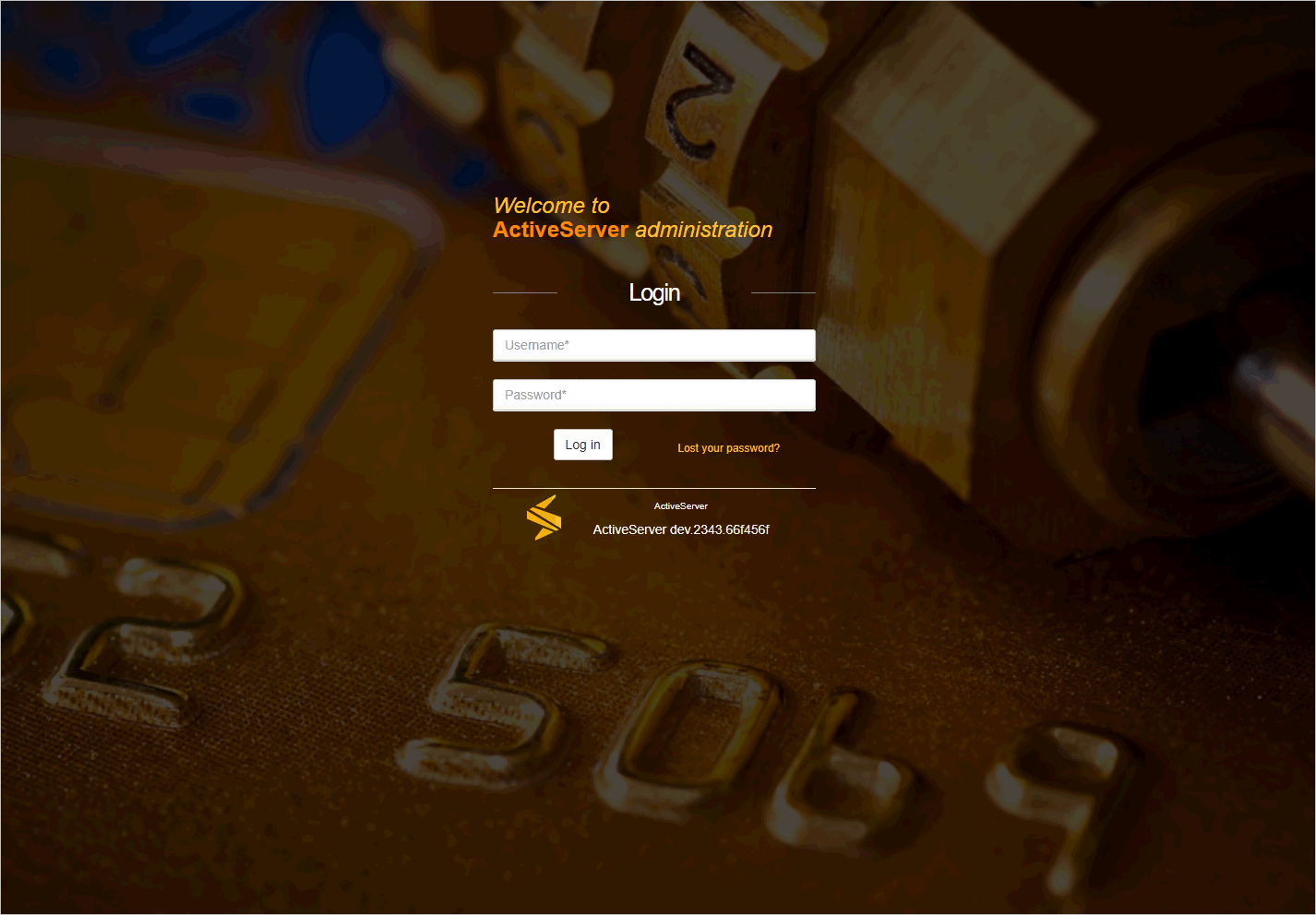

Administrator UI Login Page

What next?

After this, you can:
